When using a thermal printer, you may come across a problem where sometimes the graphics are blurry, but sometimes they are clear. This may be caused by choosing the wrong DPI of your thermal printer. DPI (dots per inch) is a common indicator of print quality, which often determines the clarity of image details and the overall presentation effect.
En tant que leader thermal printer manufacturer, AiYin is well aware of the importance of print clarity to user experience. We have an in-depth professional understanding and rich practical experience in this key indicator, the DPI parameter.
In this blog, I will analyze the dpi parameter in detail for you.
What DPI Actually Means for Thermal Printheads
DPI stands for Dots Per Inch, a measure of how many tiny dots a printhead can deposit onto a label or receipt in one linear inch. For thermal printers, this translates to the density of heating elements (or “pixels”) in the printhead—more elements mean finer control over dot placement.
But here’s a critical nuance: Nominal DPI(the number printed on the spec sheet) doesn’t always equal perceived sharpness. A 300 DPI printhead might produce crisper text than a 203 DPI model, but only if the driver, media, and ribbon align properly.

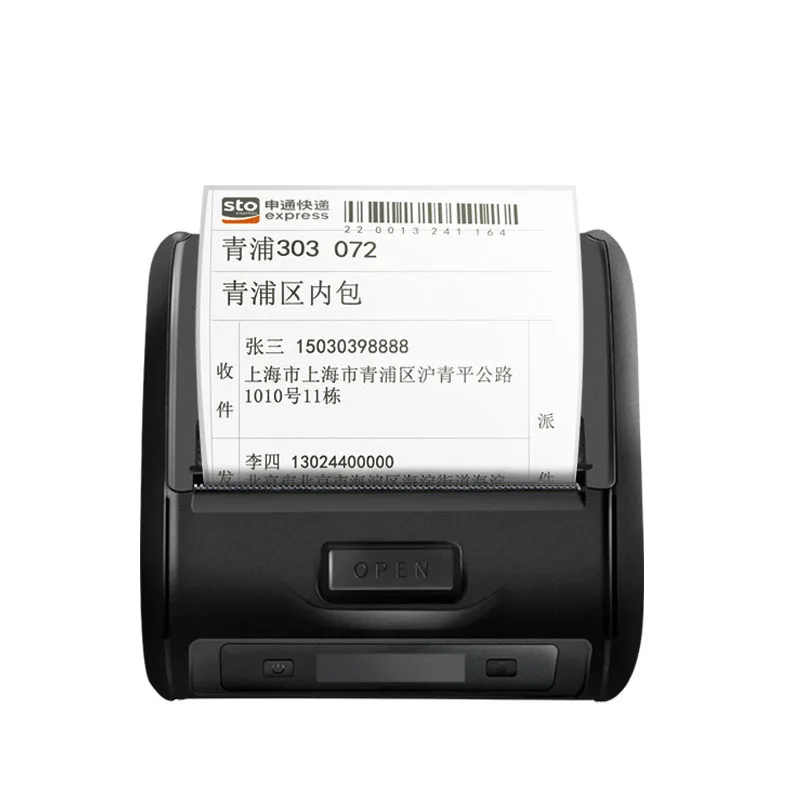

203 DPI, 300 DPI, and 600 DPI are widely used. There is common sense in industries. 203 DPI is the workhorse—common in retail, logistics, and basic labeling. 300 DPI steps up for finer details (like small barcodes or logos), while 600 DPI (and above) is reserved for specialized applications where precision is the first priority, like medical device labels, microelectronics, or jewelry tags.
How DPI Affects Real-World Output
DPI isn’t an abstract number—it directly impacts whether your prints work in the real world.
Text and Fonts
Small fonts are the first to suffer at low DPI. A 203 DPI printhead can handle 6–8 point fonts reasonably well, but when it drops below 6 points, letters start to blur. At 300 DPI, you can safely go down to 4–6 points, and 600 DPI opens the door to 2–4 point text (think pharmaceutical lot numbers or circuit board labels).
Pro tip: Always test font legibility with your specific use case—what looks good on a screen may not translate to a label.
Barcodes & Scannability

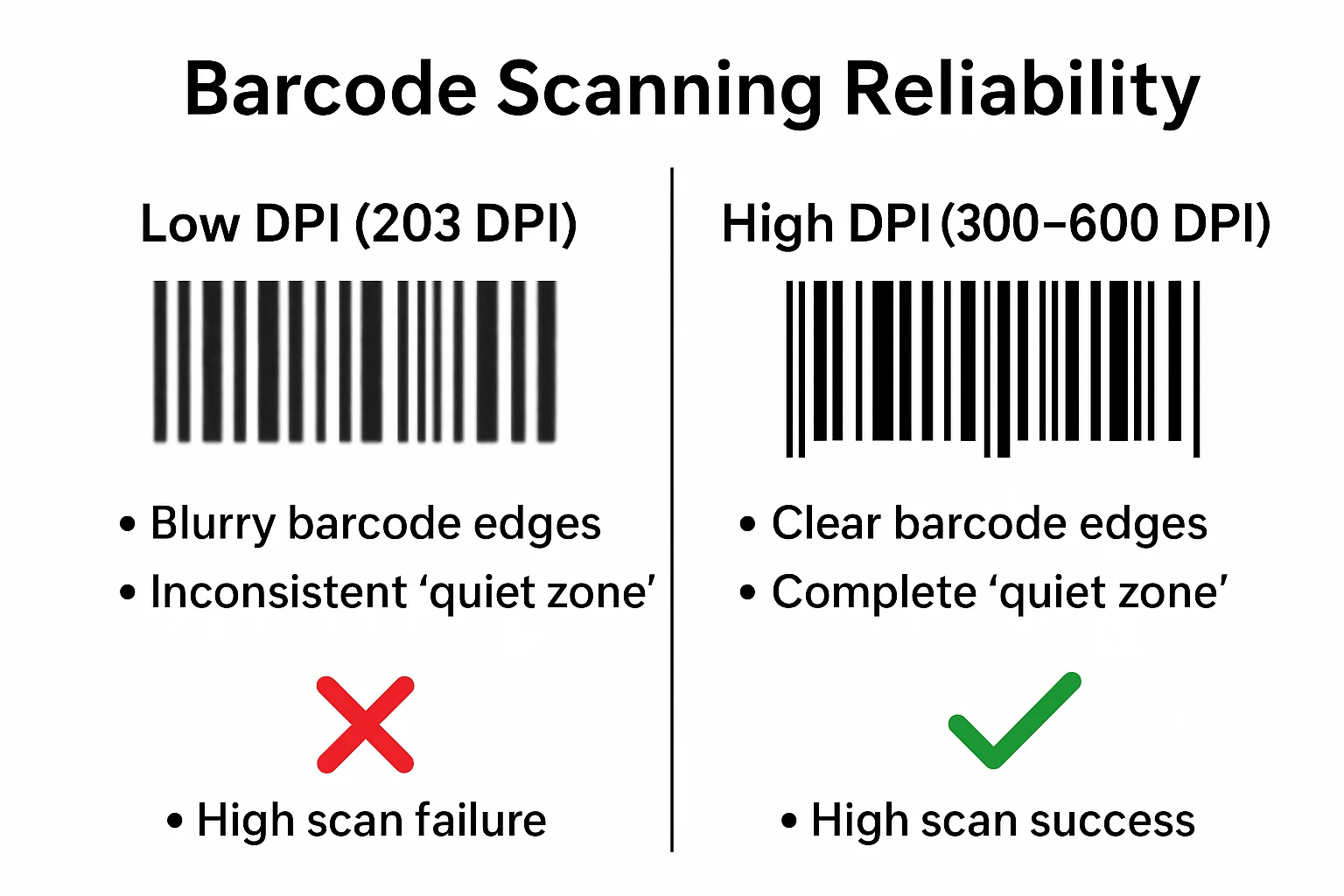

A low-DPI print can distort the “quiet zone” (the blank space around the barcode), making it unreadable by scanners. For example, a 10 mil UPC barcode (common in retail) requires a quiet zone of 0.25 inches at 203 DPI—if your printhead can’t render that cleanly, the scanner might fail. Worse, low DPI can widen the “module width” (the smallest bar/space unit), throwing off the barcode’s data density. Therefore, we can conclude that higher DPI = more consistent barcode geometry = fewer failed scans.
Graphics and Logos
For logos with gradients or fine details, low DPI will turn them into pixelated messes. Dithering (a technique to simulate colors with dots) can help, but it’s a temporary solution. The advantage of high DPI is that 300 DPI can clearly display the fine lines of the company logo, which is much sharper than 203 DPI, while 600 DPI can make the logo more “three-dimensional prominent” and have a more exquisite appearance. If your brand relies on visual identity (think luxury goods or retail packaging), DPI matters for brand perception.

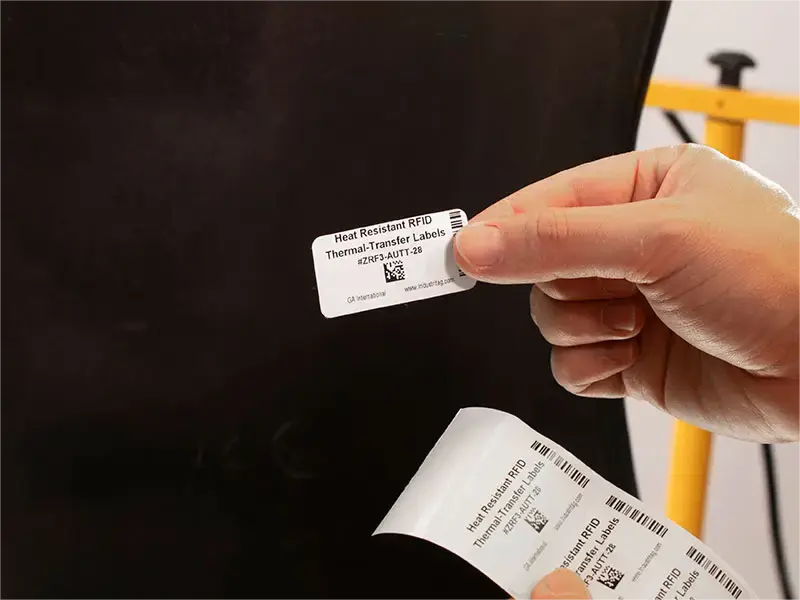

Fine Detail (Jewelry Tags, Electronics): Imagine a jewelry tag with a 1mm font size or an electronics component label with 0.5mm part numbers. At 203 DPI, these details vanish; at 600 DPI, they’re crisp and scannable. For industries where traceability is critical (medical devices, aerospace parts), 600 DPI isn’t a luxury—it’s a requirement.
Trade-Offs: Resolution vs. Speed, Cost, and Durability
Higher DPI isn’t free. Here’s what you give up—and gain:
Print Speed

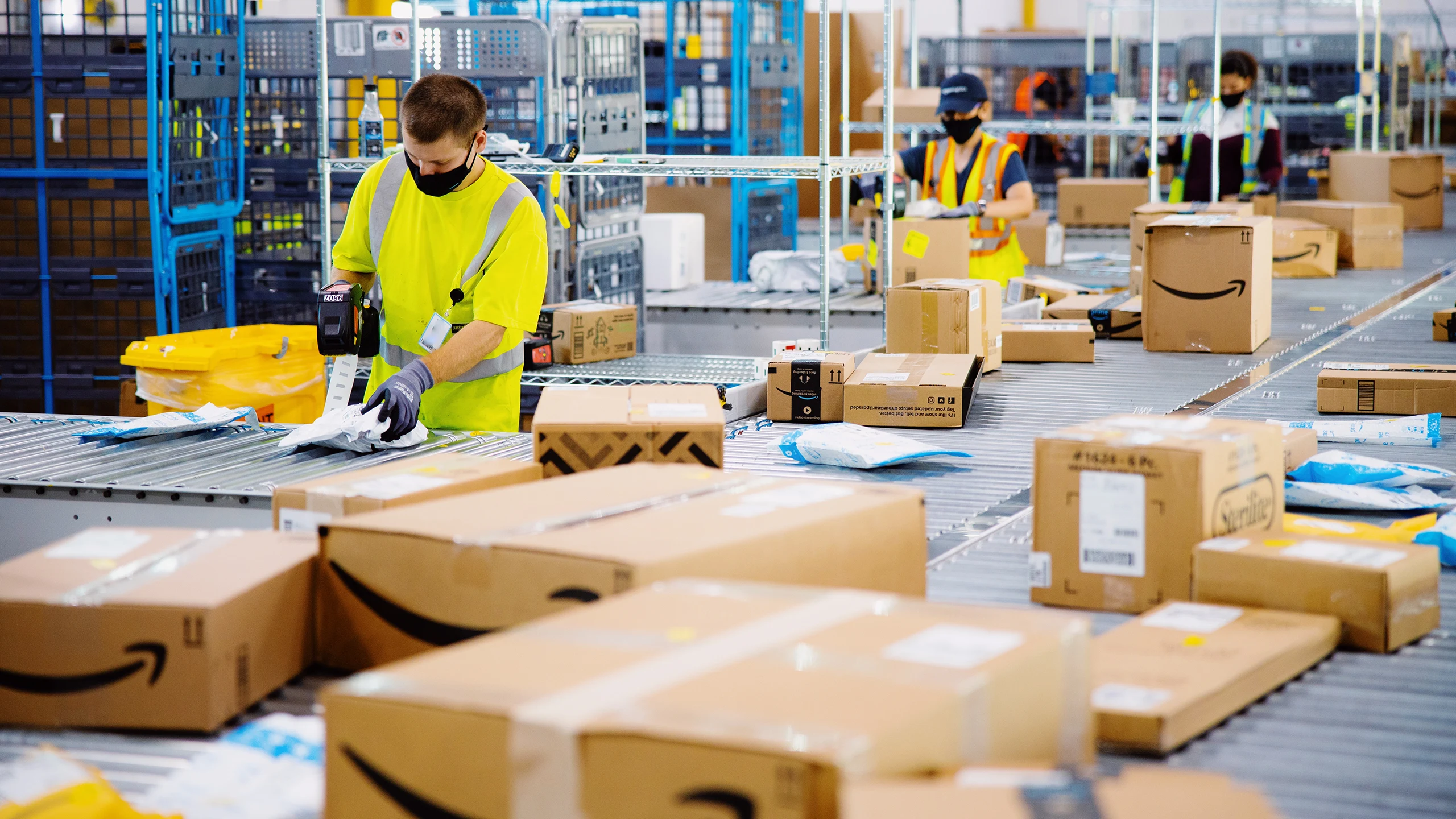

To print more dots per inch, the printhead spends more time firing heating elements. So, high DPI printing requires more data volume and heating times for the same image. Generally speaking, high DPI printing will be slower than low DPI printing. If you’re printing high-volume receipts, speed matters more than DPI; if you’re printing medical labels, precision comes first.
Costs
Higher DPI printheads are often more complex because it has more heating elements and are pricier to replace. They also demand better media—low-cost paper might feather or bleed at 600 DPI, ruining the output.
For thermal transfer, printing at higher DPI (dots per inch) demands carbon ribbons with finer, more precise coatings to ensure that each tiny dot is accurately transferred to the substrate. Without such precision, the print can smudge or blur, compromising quality. Consequently, achieving high-resolution output increases the consumption of premium ribbons, leading to higher overall consumable costs.
Durability
More heating elements mean more potential points of failure. Under the same printhead width, a 600 DPI printhead has twice as many elements as a 300 DPI model, so it may require more frequent cleaning or have a shorter lifespan under heavy use.
Thanks to durable materials like alumina ceramics, modern thermal printheads can withstand the demands of high-DPI printing while minimizing wear and extending their lifespan.
File Sizes & Processing
In thermal printing, image resolution has a direct impact on processing efficiency. For example, an image with 600 DPI contains about 9 times more dots than an image with 203 DPI, because DPI is a linear metric and the dot area increases with the square. This will significantly increase file size, which may lead to slower processing in embedded systems or cause delays in label design software during rendering. If the printing task relies on real-time output, it is necessary to optimize the image resolution in the early stage to ensure printing efficiency and system stability.
Media, Ribbon, and Printer Compatibility
The quality of your media, ribbon, and printer hardware all play supporting roles.
Label Material
Paper labels offer excellent adaptability: The surface of paper is typically rougher and more porous than synthetic materials, which facilitates better contact between the thermal head and the label surface, resulting in even heat transfer. This allows for clear and legible lines and barcodes even at lower DPIs (such as 203 DPI).
In contrast, synthetic materials (such as polyester or polypropylene) have a smoother surface, which can sometimes lead to less even contact between the thermal head and the label. Low DPI printing can easily result in horizontal banding (due to uneven heat distribution). For these materials, using a resolution of 300 DPI or higher is more reliable.
Ribbon Compatibility
Wax-based ribbons are primarily designed for porous paper labels. Their low melting point allows them to adhere well to rough surfaces. However, when used on smooth synthetic materials, the ink can easily scratch and smear.
In contrast, resin-based ribbons are made from a stronger material, requiring higher heat to melt and providing superior durability.
At high resolutions such as 600 DPI, using the wrong ribbon can cause printers to experience missing dots due to insufficient heat or accelerate printhead wear due to excessive heat. Therefore, to ensure print quality and device health, it’s important to select the correct ribbon for your media and printing needs.
Printer Mechanics & Firmware
Even the best DPI is useless if the printer’s mechanical components aren’t working properly. For example, if the paper feed roller is wobbling, it can cause printed dots to be misaligned at high DPI, resulting in blurry output. Similarly, the printer’s driver is crucial. An older driver might not properly handle a 600 DPI image, resulting in print errors. Therefore, when you upgrade your DPI, be sure to keep your printer’s firmware and drivers up to date.
Software, Design & Image Preparation Best Practices
Even the highest DPI printhead can’t fix a poorly designed file.

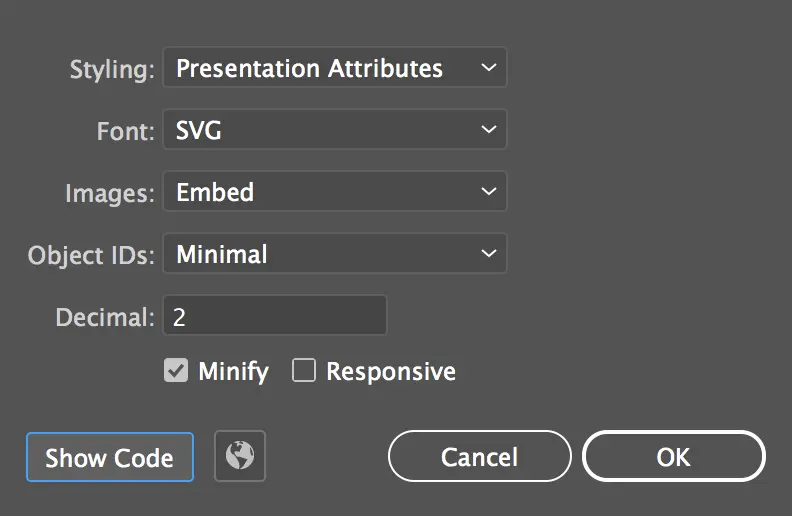

Vector vs. Raster: Use vector graphics (SVG, AI) for logos, text, and shapes. Vectors scale infinitely without losing quality, so they’ll look sharp at any DPI. Raster images (PNG, JPG) must match your target DPI. A 203 DPI raster image stretched to fit a 300 DPI label will look pixelated—always design raster art at your final DPI.
Scaling Rules: Never upscale a low-res image. If you need a 300 DPI image, start with a 300 DPI source file. Upscaling (e.g., taking a 72 DPI web image and resizing it to 300 DPI) just makes the pixels bigger—no new detail is added.
Barcode Generation: Use trusted tools to ensure correct module width and quiet zones. For UPCs, the module width should be no smaller than 0.013 inches at 203 DPI—any smaller, and scanners may misread the code. Always verify barcodes with a scanner after printing, not just on screen.
Testing, Calibration & Verification
You wouldn’t trust a car without a test drive—don’t trust a printer without testing its DPI.

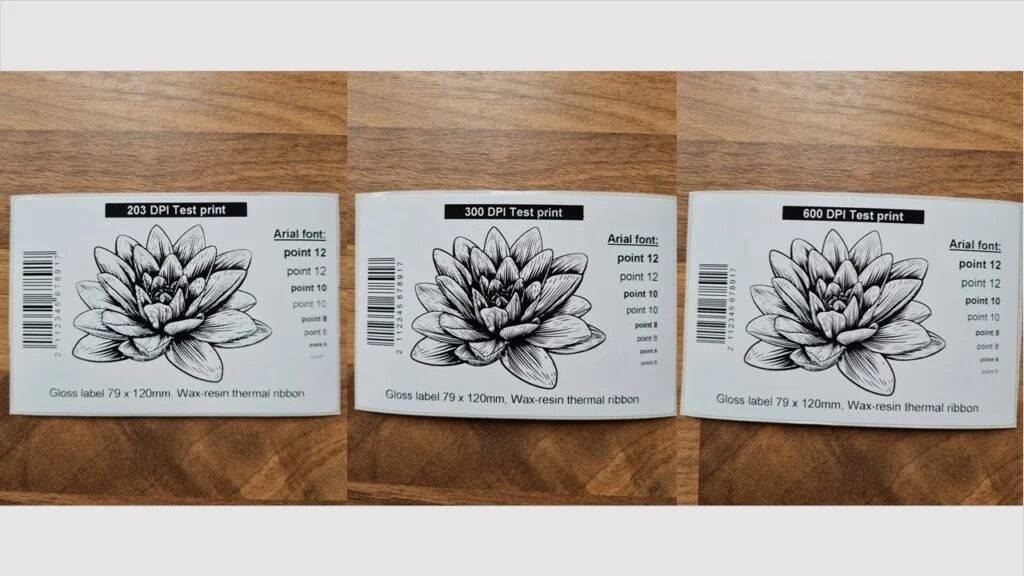

Print Quality Tests: Run a sample sheet with text blocks (6pt, 8pt, 10pt), barcode samples (UPC, Data Matrix), and a graphic with fine lines (e.g., a 0.5mm crosshair). Use a magnifying glass or microscope to check for dot alignment, banding, or missing dots.
Barcode Verifiers: Invest in a barcode verifier to grade scannability. An “A” grade means the barcode will work reliably across scanners; a “C” grade means you need to adjust DPI, darkness, or media.
Adjustments: If your prints are too light, increase the print darkness (but watch for ribbon burnout). If they’re blurry, check the printhead alignment or clean the printhead. If barcodes fail, verify the quiet zone—you might need to widen it in your design software.
Choose the Thermal Printer with the Appropriate DPI Based on Your Needs
| Application | Typical DPI Recommendation | Reasons |
|---|---|---|
| Retail receipts, shipping labels | 203 dpi | Fast, cost-effective, sufficient barcode density |
| Product labels with logos and moderate detail | 300 dpi | Better logo fidelity and smaller font support |
| Jewelry tags, PCB labels, tiny serial numbers | 600 dpi | Required for microtext and extremely dense barcodes |
| High-density barcodes on small parts | 300–600 dpi | Prevents scanner read failures |
| Cold-chain/industrial tags on synthetic media | 300 dpi (with resin ribbon) | Balances durability and clarity |
Conclusion
DPI is a critical specification—but it’s not the only one. A high-DPI printer might surprise you in the demo, but if it’s too slow for your warehouse or too fragile for your production line, it’s not the right fit. All in all, the most suitable one for you is the best one for you. So choose wisely.
